5 gallon pure water filling line
Machine type：QGF-150
Product introduce：1. Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2. The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
3. Barrel packing is different from
Performance characteristics
Product introduction
1. Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2. The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
3. Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4. In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5. Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging

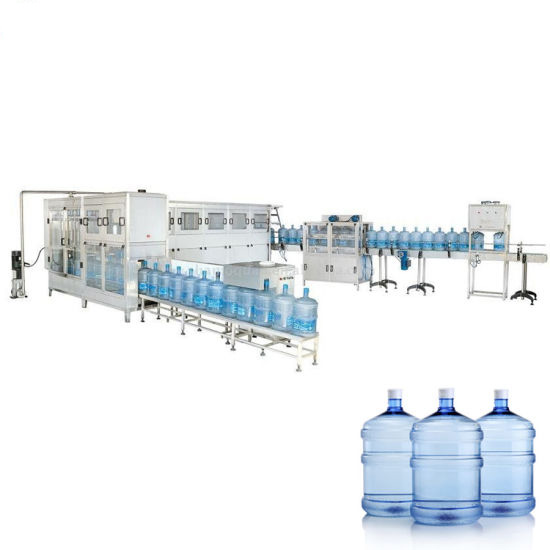

.jpg)
Working principle
The whole filling speed ranges from 100BPH to 1500BPH.
Filling the pure water or the mineral water in 3 or 5 gallons.
The series of machine integrate rinsing,contain rinser-filler-capper monoblock,automatic loading machine,bottle outside washer,bottle inside washer,decapper,heating shrink tunnel,conveyor system,complete line control system
Technical parameters
| Model |
HKB-100B/H |
HKB-200B/H |
HKB-300B/H |
HKB-450B/H |
HKB-600B/H |
HKB-900B/H |
HKB-1200B/H |
| Filling heads |
1 |
2 |
3 |
4 |
4 |
6 |
8 |
| Volume |
18.9cbm |
18.9cbm |
18.9cbm |
18.9cbm |
18.9cbm |
18.9cbm |
18.9cbm |
| Barrel size |
Φ270*490mm |
Φ270*490mm |
Φ270*490mm |
Φ270*490mm |
Φ270*490mm |
Φ270*490mm |
Φ270*490mm |
| Capacity |
100 |
200 |
300 |
450 |
600 |
900 |
1200 |
| Gas pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
| Gas consumption |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
| Motor power |
1.38W |
1.75W |
3.8W |
3.8W |
7.5W |
9.75W |
13.5W |
| Rated voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
| Weight |
680kg |
800kg |
1500kg |
2100kg |
3000kg |
3500kg |
4500kg |
Technical parameters change, no further notice.
