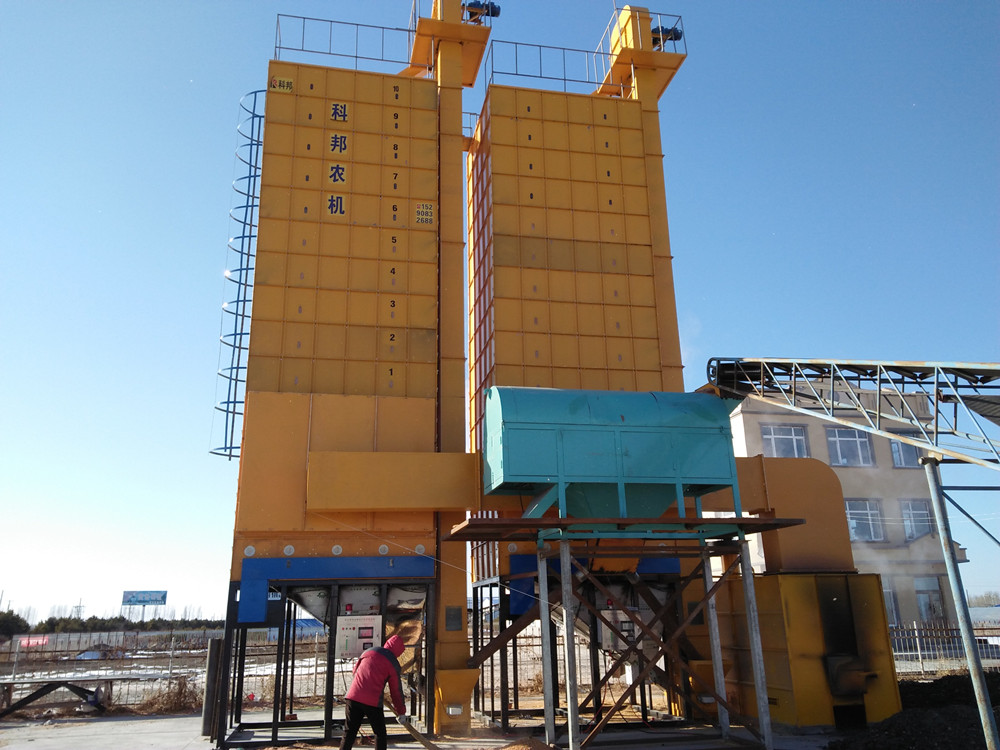

Wheat dryer
Machine type:5H-KB-15Wheat dryer is an ideal drying equipment to dry grain and oilseeds, wheat is input to the top by bucket elevator, through the feeding device, to ensure that the equipment during operation is always in full load condition. Induced draft fan introduce hot air into inside of the tower body, through the combined effects of inwardly inverted V-shaped baffle bottomless and processing and staggered rows of V-shaped baffle, so that wheat can be mixed with hot air, as well as dry air access routes, a majority of dried air can be recycled, water vapor generated by drying the material discharged from the dryer exhaust system, it consumes very little fuel. 5HY series low-temperature batch circulating wheat dryer adopts low temperature drying method to achieve drying.
Model | 5H-KB-15 | 5H-KB-20 | 5H-KB-35 | |
Dryer type |
Batch type recirculating |
|||
Capacity | 15 tons pe batch |
20 tons pet batch |
35 tons per batch |
|
Dryer Volume(m3) | 25 | 37.25 | 62.5 | |
Overall weight(kg) | 5000 | 6000 | 9500 | |
Overall Dimension(mm) | 2900*4050*11500 | 2900*4050*12200 | 3500*4400*13330 | |
Power(kw) | 8.7 | 8.7 | 13.5 | |
Bunner | Type | Indirect Type | ||
Ignition method | Manual Ignition | |||
Fuel consumption (kg/h) |
≤25(coal) 30-40(rice husk) |
≤25(coal) 30-40(rice husk) |
≤30(coal) 70-120(rice husk) |
|
Fuel | Coal, rice husk, wood chips, gas, diesel, etc | |||
Voltage | 380V, 50Hz, 3 phase (Can be customized) | |||
Moisture Reduction per hour(%/h) | Rice/wheat:0.5-0.8 | Rice/wheat:0.5-1.2 |
